Description
| Mechanical | |
|---|---|
| Dimensions | 316.5 x 316.5 x 174.3 mm (12.46 x 12.46 x 6.86″) |
| Weight | 1.3 kg (2.87 lb) |
| Enclosure material | UV-stabilized polycarbonate |

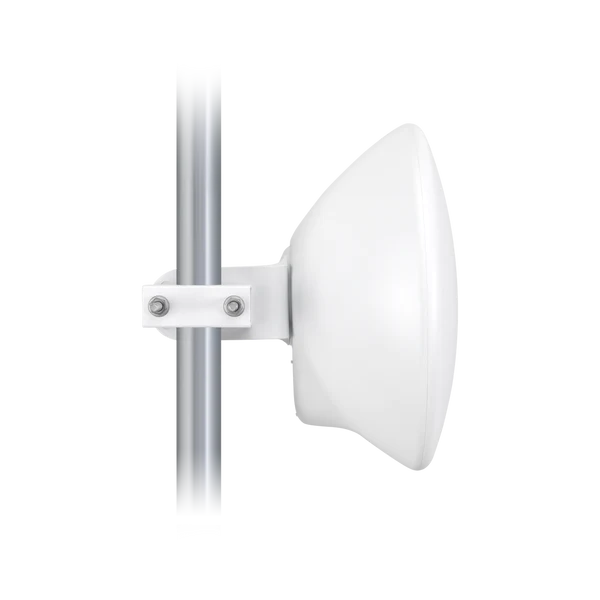

| Mounting | Pole mount (Kit included) |
| Wind loading | 150 N at 200 km/h (33.72 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking interface | (1) 10/100/1000 MbE RJ45 port |
| Power method | 24V Passive PoE (Pairs 4, 5+; 7, 😎 |
| Power supply | 24V, 0.5A Gigabit PoE adapter (Included) |
| Max. power consumption | 9W |
| Supported voltage range | 22 -26V |
| ESD/EMP protection | Air/contact: ± 24kV |
| Operating temperature | -40 to 60° C (-40 to 140° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| OS | airOS® |
| Modes | PtMP CPE only |
| Management interface | Bluetooth management for easy setup over UISP App WEB UI |
| Minimum software requirements | Any modern web browser/iOS™ or Android™ based smartphone |
| System | |
| Maximum throughput | 900+ Mbps* *FW version 2.3.0 and later. |
| RF | |
| Operating frequency* US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 EU Worldwide | 5150 – 5250 MHz 2400 – 2483.5 MHz 2400 – 2483.5 MHz |
| Max. conducted TX power | 22 dBm (per chain) |
| Channel bandwidth | 10/20/30/40/50/60/80/100 MHz* *FW version 2.3.0 and later. |
| Antenna gain | 24 dBi |
| Beamwidth | 14° |
| Sidelobe level | -10 dB |
| Front-to-back ratio | 27 dB |
| LEDs | |
| System | Flashing white: bootup in progress White: ready for use, not connected to UISP application Flashing blue: locate in progress Blue: connected to UISP application Blue/white: firmware upgrade in progress |
