Description
| Mechanical | |
|---|---|
| Dimensions | 512.5 x 385.75 x 258.3 mm (20.18 x 15.19 x 10.17″) |
| Weight | Without mount: 1.36 kg (3 lb) With mount: 1.74 kg (3.8 lb) |
| Enclosure material | UV-stabilized polycarbonate |

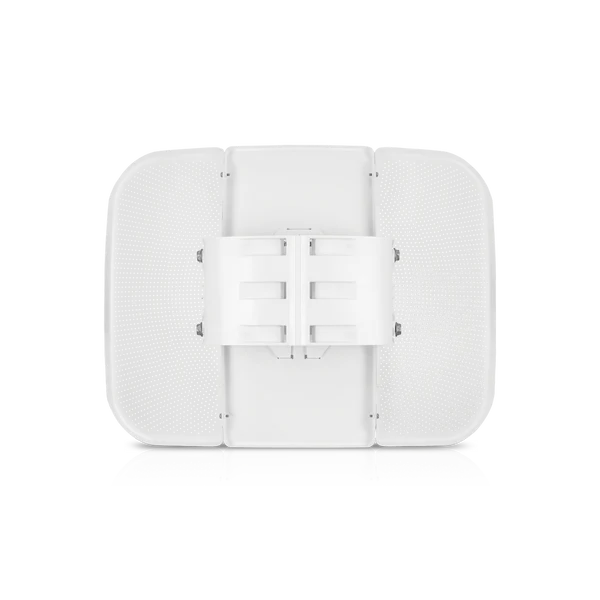

| Mounting | Pole mount (Kit included) |
| Wind loading | 550 N at 200 km/h (123.6 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking interface | (1) 10/100/1000 MbE RJ45 port |
| Power method | 24V Passive PoE (Pairs 4, 5+; 7, 😎 |
| Power supply | 24V, 0.5A Gigabit PoE adapter (Included) |
| Supported voltage range | 22—26V |
| Max. power consumption | 8.5W |
| ESD/EMP protection | Air/contact: ± 24kV |
| Operating temperature | -40 to 60° C (-40 to 140° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| OS | airOS® |
| Modes | PtMP CPE only |
| Management interface | Bluetooth management for easy setup over UISP App WEB UI |
| Minimum software requirements | Any modern web browser/iOS™ or Android™ based smartphone |
| System | |
| Maximum throughput | 900+ Mbps* *FW version 2.3.0 and later. |
| RF | |
| Operating frequency* US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 Worldwide | 5150 – 5250 MHz 4800 – 6200 MHz |
| Management Radio Worldwide | 2400 – 2483.5 MHz |
| Max. conducted TX power | 22 dBm (per chain) |
| Channel bandwidth | 10/20/30/40/50/60/80/100 MHz* *FW version 2.3.0 and later. |
| Antenna gain | 26 dBi |
