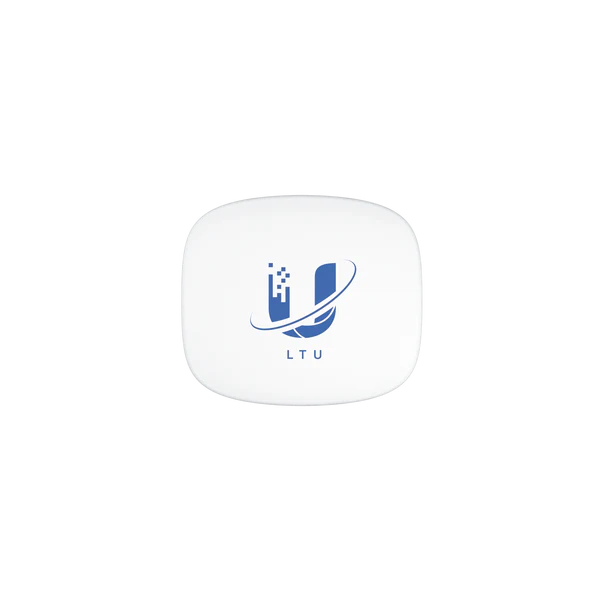

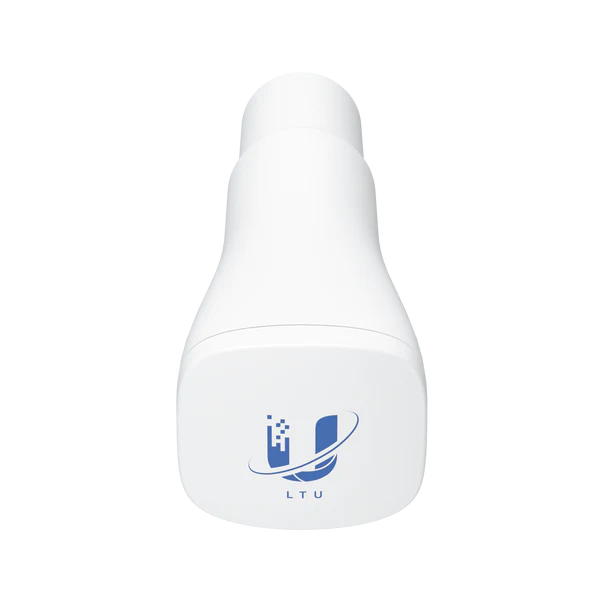

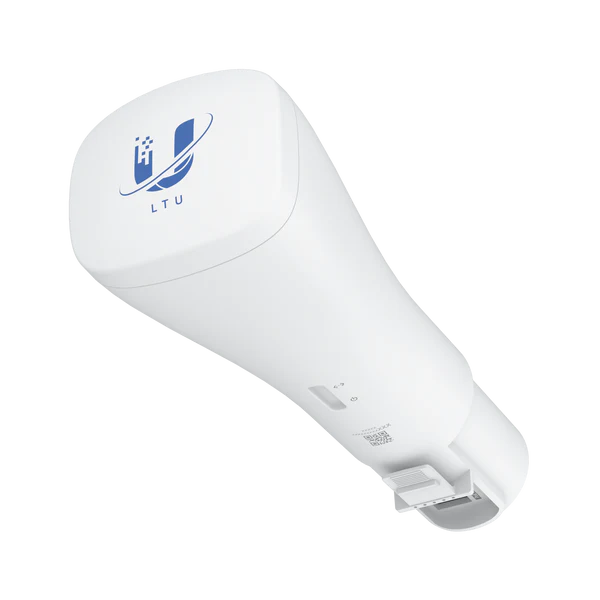

UISP LTU Instant (5-pack)

SKU: LTU-Instant-5-US Category:

In Stock

5 GHz LTU® client that functions in a point-to-multipoint (PtMP) environment with the LTU Rocket as its base station.

The LTU Instant is a 5 GHz LTU client that serves as a plug-and-play conversion module for existing LiteBeam® (LBE 5AC Gen 2) deployments. Designed to function in a PtMP environment with an LTU Rocket serving as its base station, the LTU Instant delivers up to 900+ Mbps* of real TCP/IP throughput with its 22 dBi high-gain antenna. It also offers a robust feature set including frequency splitting, router mode support, accommodating bandwidth options, and configuration management from the AP side. The LTU Instant can be set up in minutes and fully managed with the UISP® web application or mobile app.

Features:

      • Proprietary Ubiquiti LTU core processor
      •  22 dBi high-gain antenna with InnerFeed® technology
      • Easily integrates with LBE 5AC Gen 2 deployments
      • Channel width flexibility (10/20/30/40/50/60/80/100 MHz* bandwidth)
      • Configuration management from the AP side
      • Router mode support
      • Frequency splitting
      • Quick, Bluetooth-powered setup via the UISP Mobile app
      • Includes (5) feeds and (5) PoE adapters
Managed with the UISP application: Version 2.19.2 and later (iOS), 2.20.2 and later (Android)

Note: The LTU Instant is incompatible with airMAX networks and will not connect to airMAX AC.
The LBE 5AC Gen 2’s antenna stays in place when migrating to the LTU Instant.

*FW version 2.3.0 and later.

Request Quote:

SKU: LTU-Instant-5-US Category:

Description

Mechanical
DimensionsFeed: 201.46 x 64.15 x 56.15 mm (7.93 x 2.53 x 2.21″)
Antenna: 358 x 271.95 x 288.5 mm (14.09 x 10.71x 11.36″)
WeightFeed: 215 g (7.58 oz)
Antenna: 890 g (1.96 lb)
Antenna with mount: 1.07 kg (2.36 lb)
Enclosure materialUV-stabilized polycarbonate
Wind loading275 N at 200 km/h (61.8 lbf at 125 mph)
WeatherproofingIPX6
Hardware
Networking interface(1) GbE RJ45 port
RF connectionsInternal
Max. power consumption8.5W
Power methodPassive PoE 2-pair (4, 5+; 7, 😎
Power supply24VDC, 0.5A Gigabit PoE adapter (included)
Supported voltage range22—26V DC
LEDsPower/Ethernet
Operating temperature-40 to 60° C (-40 to 140° F)
Operating humidity5 to 95% noncondensing
CertificationsFCC, IC, CE
Software
OSairOS®
ModesPtMP CPE only
Management interfaceUISP application (web/mobile)
Minimum software requirementsAny modern web browser/iOS™ or Android™ based smartphone
System
Maximum throughput900+ Mbps*
*FW version 2.3.0 and later.
EncryptionWPA2-PSK (AES)
Uplink/downlink ratio25/75, 33/67, 50/50
RF
Operating frequency*5.15 to 5.95 GHz
*Depends on regulatory region.
Max. conducted TX power22 dBm (per chain)
Channel bandwidth10/20/30/40/50/60/80/100 MHz*
*FW version 2.3.0 and later.
Antenna gain22 dBi
Isolation20 dB
