Description
| Mechanical | |
|---|---|
| Dimensions | 160 x 80 x 30 mm (6.30 x 3.15 x 1.18″) |
| Weight | 500 g (1.1 lb) |
| Enclosure material | UV-stabilized plastic |
| Hardware | |

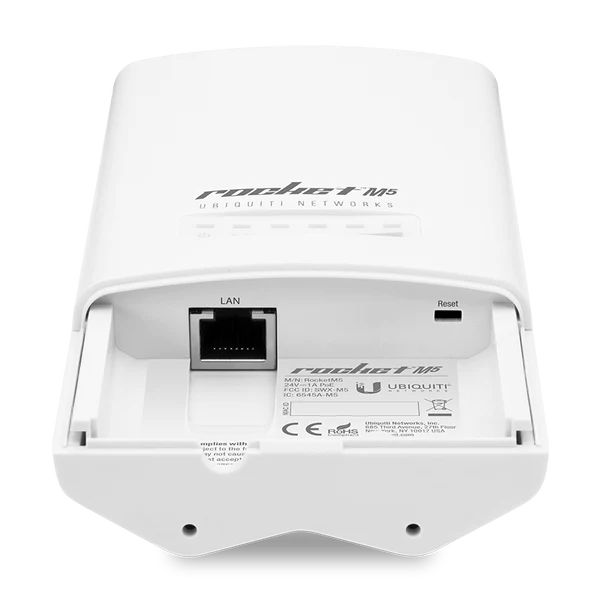

| Networking interface | (1) 10/100 MbE RJ45 port |
| Power method | Passive PoE (pairs 4, 5+; 7, 8 return) |
| Power supply | 24V, 1A PoE adapter (Included) |
| Max. power consumption | 8W |

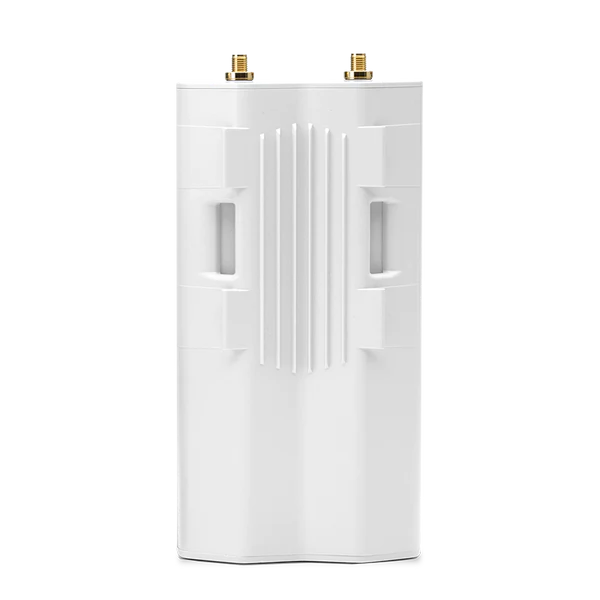

| RF connectors | (2) RP-SMA (waterproof) |
| Shock and vibration | ETSI300-019-1.4 |
| Operating temperature | -30 to 75° C (-22 to 167° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Operating Frequency (Mhz) | |
| Worldwide | 5150 – 5875 MHz |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 |
5150 – 5250 MHz 5250 – 5350 MHz 5470 – 5725 MHz 5725 – 5850 MHz |
| IC | 5470 – 5600 MHz 5650 – 5725 MHz 5725 – 5850 MHz |
