Description
| Mechanical | |
|---|---|
| Dimensions | 88 x 40 x 230 mm (3.47 x 1.58 x 9.06″) |
| Weight | 400 g (14.11 oz) |
| Enclosure material | Die-cast aluminum |
| Hardware | |
| Networking interface | (1) 10/100/1000 MbE RJ45 port |
| Power method | Passive PoE (pairs 4, 5+; 7, 8 return) |
| Power supply | 24V, 0.5A Gigabit PoE adapter (Included) |
| Max. power consumption | 9.5W |

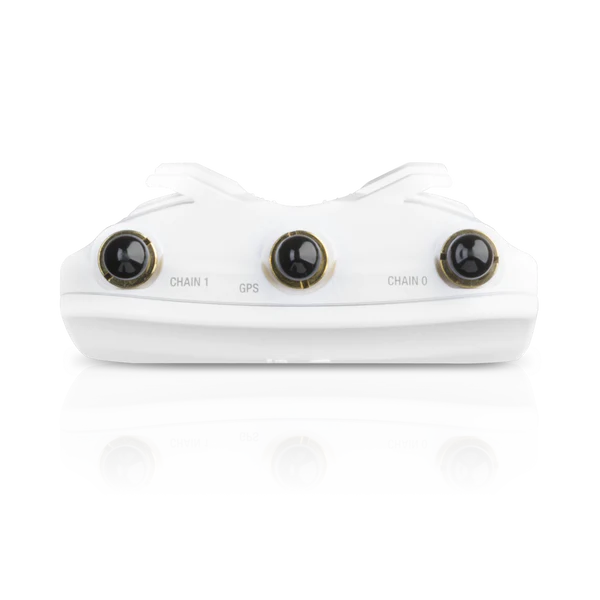

| RF connectors | (2) RP-SMA (waterproof) (1) GPS (waterproof) |
| LEDs | Power, LAN, (4) signal strength |
| ESD/EMP Protection | Air/contact ± 24kVt |
| Shock and vibrations | ETSI300-019-1.4 |
| Operating temperature | -40 to 80° C (-40 to 176° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Operating Frequency (MHz) | |
| Worldwide | 2412 – 2472 MHz |
| US/CA | 2412 – 2462 MHz |
| Management Radio (MHz) | |
| Worldwide | 5150 – 5250 MHz |
| US/CA | U-NII-3: 5725 – 5850 MHz |
