Description
| Mechanical | |
|---|---|
| Dimensions | Device: 155 x 155 x 104 mm (5.16 x 5.16 x 4.09″) Mounting hardware: 83 x 117 x 69 mm (3.27 x 4.61 x 2.72″) |
| Weight | Deice: 0.77 kg (1.70 lb) Mounting hardware: 0.79 kg (1.74 lb) |
| Wind loading | 31 N at 200 km/h (7 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |

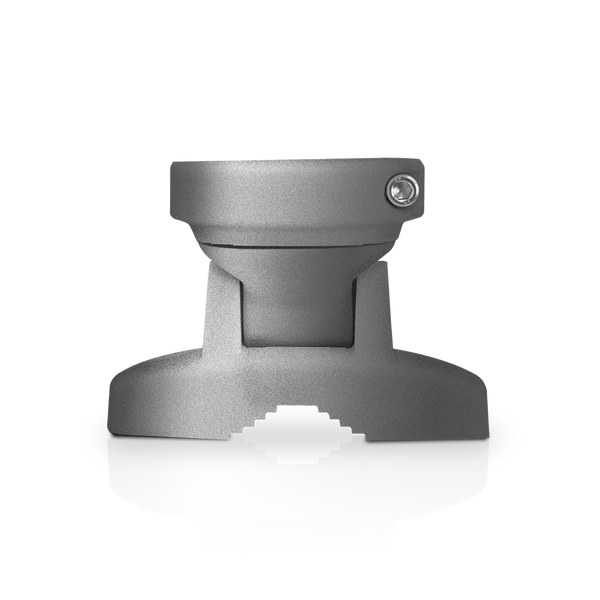

| Mounting | Pole mount kit (Included) |
| Hardware | |
| Networking interface | (1) 10/100/1000 MbE port |
| Power method | 24V Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Power supply | 24V, 1A Gigabit PoE adapter (Included) |
| Max. power consumption | 10W |
| Supported voltage range | 20—26V DC |
| ESD/EMP protection | Air/contact: ± 24kV |
| RF connector | (1) GPS |
| Max. VSWR | 2:1 |
| Polarization | Dual-Linear |
| LED | (1) Power |
| Operating temperature | -40 to 70° C (-40 to 158° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Operating Frequency (MHz) | |
| US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 |
5150 – 5250 MHz 5250 – 5350 MHz 5470 – 5725 MHz 5725 – 5850 MHz |
| Worldwide | 5150 – 5875 MHz |
| Management Radio (MHz) | |
| US/CA | 2412 – 2462 MHz |
| Worldwide | 2412 – 2472 MHz |
