Description
| AMY-9M16 | |
|---|---|
| Frequency Range | 902 – 928 MHz |
| Gain | 16 dBi, Both Polarizations |
| HPOL Beamwidth | 29 to 34° |
| VPOL Beamwidth | 29 to 34° |
| F/B Ratio | 20 dB |
| Max. VSWR | < 1.5:1 Over Band |
| Dimensions (mm) | 1365 x 215 x 218 |
| Weight | 2.5 kg |
| Wind Survivability | 120 mph |
| Wind Loading | 35 ft-lbs @ 100 mph |
| Polarization | Dual Linear |
| Cross-pol Isolation | 20 dB |
| ETSI Specification | EN 302 326 DN2 |

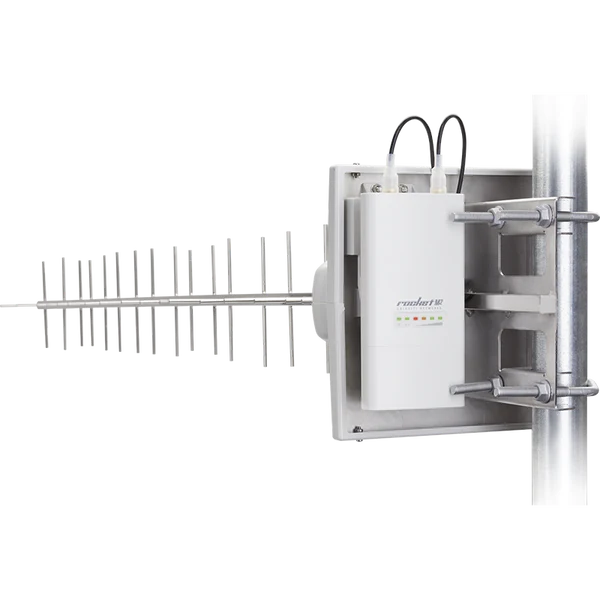

| Mounting | M8 U-Bolt Pole Mounting Kit Included |
