Description

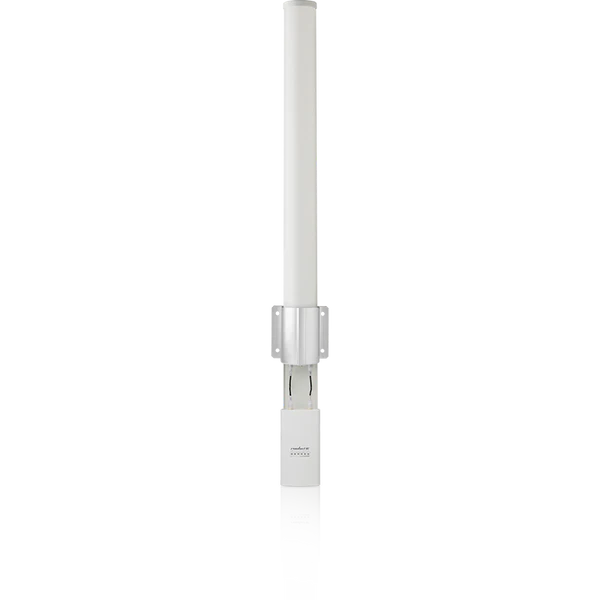

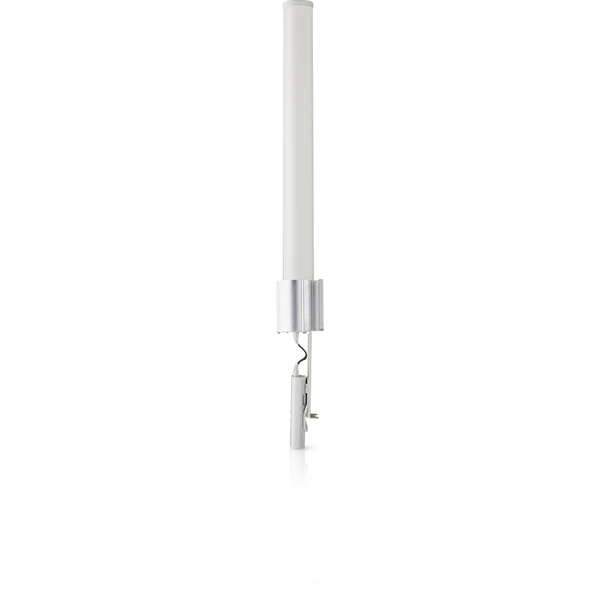

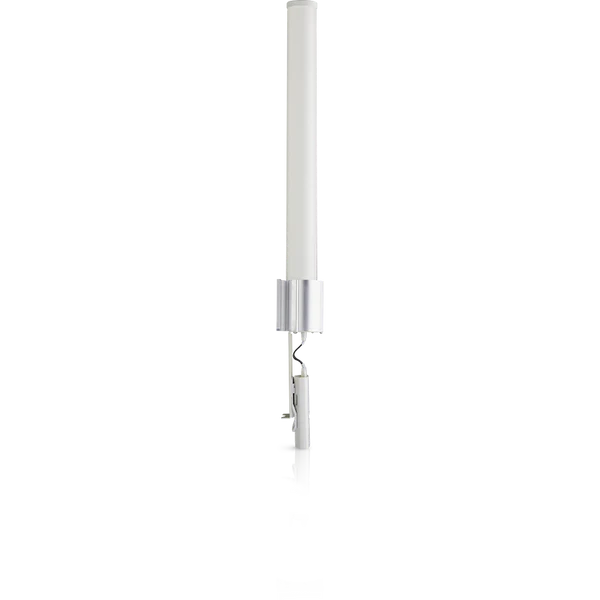

AMO-2G10
Dimensions (mm) 1030 x 122 x 84 mm
Weight 2.1 kg
Frequency Range 2.35 – 2.55 GHz
Gain 2.35 – 2.55 GHz
Elevation Beamwidth 12°
Max. VSWR 1.7:1
Downtilt 4°
Wind Survivability 125 mph
Wind Loading 14 lb @ 100 mph
Polarization Dual-Linear
Cross-pol Isolation 25 dB min.
ETSI Specification EN 302 326 DN2
Mounting Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included
| AMO-2G10 | |
|---|---|
| Dimensions (mm) | 1030 x 122 x 84 mm |
| Weight | 2.1 kg |
| Frequency Range | 2.35 – 2.55 GHz |
| Gain | 2.35 – 2.55 GHz |
| Elevation Beamwidth | 12° |
| Max. VSWR | 1.7:1 |
| Downtilt | 4° |
| Wind Survivability | 125 mph |
| Wind Loading | 14 lb @ 100 mph |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 25 dB min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
