Description
| Mechanical | |
|---|---|
| Dimensions | 224 x 82 x 48 mm (8.82 x 3.23 x 1.89″) |
| Weight | 0.35 kg (0.77 lb) |
| Mounting | airFiber X mount (Rocket mount compatible) GPS Pole Mount (Included) |
| Weatherproofing | IP67* *After installation of IP67 upgrade kit (included). |
| Hardware | |
| Processor | airFiber LTU IC |

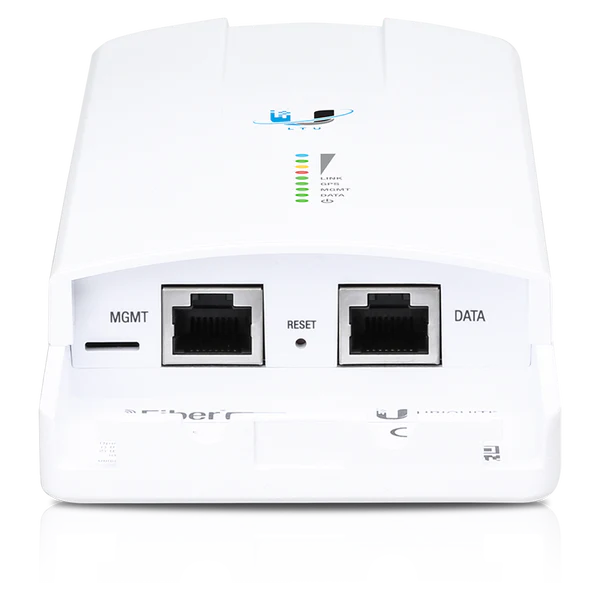

| Networking Interface | (1) 10/100/1000 MbE port |
| Power method | Passive PoE (Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-)) |
| Power supply | 24V, 1A PoE Gigabit adapter (Included) |
| Supported voltage range | 18—54V DC |
| Max. power consumption | 12W |
| GPS antenna | External, magnetic base |
| Operating temperature | -40 to 55° C (-40 to 131° F) |
| Certifications | CE, FCC, IC |
| Software | |
| OS | airOS |
| Modes | PtP Master/Slave |
| System | |
| Max. throughput | 1+ Gbps |
| Max. range* | 100+ km *Throughput and range values may vary depending on the environmental conditions |
| Encryption | AES-256 |
| RF | |
| Max. TX power* | 29 dBm *Depends on regional regulations. |
| Frequency accuracy | ± 2.5 ppm without GPS Synchronization ± 0.2 ppm with GPS Synchronization |
| Channel bandwidth | 10/20/30/40/50/60/80/100 MHz selectable Programmable Uplink and Downlink duty cycles |
| Operating Frequency (MHz) | |
| Worldwide | 4800 – 6200 MHz* *Depends on regional regulations. |
| US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 |
5150 – 5250 MHz 5250 – 5350 MHz 5470 – 5725 MHz 5725 – 5850 MHz |
