Description
| Mechanical | |
|---|---|
| Dimensions | 938.4 x 468.4 x 281.4 mm (36.94 x 18.44 x 11.08″ |
| Weight | 16 kg (35.27 lb) |

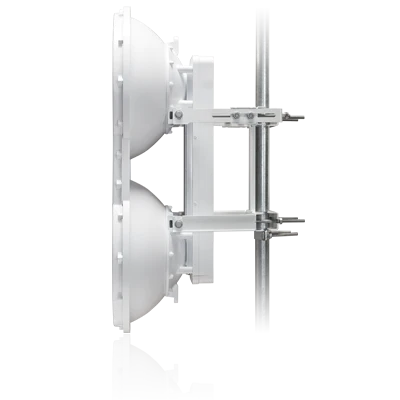

| Mounting | Pole mount kit (Included) |
| Wind Loading | 863 N @ 200 km/h (194 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking interface | (1) 10/100/1000 MbE port (1) 10/100 MbE port |
| Auxiliary Port | (1) RJ-12, alignment tone port |
| Power method | Passive PoE |
| Power supply | 50V, 1.2A PoE GigE adapter (Included) |
| Supported voltage range | +42—58V DC |
| Max. power consumption | 40 W |
| Operating temperature | -40 to 55°C (-40 to 131° F) |
| Certifications | CE, FCC, IC |
| System | |
| Max. throughput | 1.2+ Gbps |
| Max. range* | 100+ km *Dependent on regulatory region. |
| Packets per second | 1+ million |
| Encryption | 128-Bit AES |
| Uplink/Downlink Ratio | 50% Fixed |
| Radio Frame Synchronization | GPS |
| RF | |
| Operating frequency | 5470 – 5600 MHz, 5650 – 5850 MHz (FCC 15.247, 15.407, IC RSS 210) 5470 – 5875 MHz (ETSI EN 301 893, EN 302 502) 5470 – 5950 MHz (Other Regions) |
| GPS | GPS Clock Synchronization |
| EIRP | ~50 dBm *Dependent on regulatory region and frequency band. |
| Frequency accuracy | ±2.5 ppm without GPS synchronization ±0.2 ppm with GPS synchronization |
| Channel bandwidth | 10/20/30/40/50 MHz |
| Modulation | 1024QAM MIMO 256QAM MIMO 64QAM MIMO 16QAM MIMO QPSK MIMO ½ Rate QPSK xRT ¼ Rate QPSK xRT |
| Gain TX RX |
23 dBi 23 dBi |
| Beamwidth | 6° |
| Front-to-back ratio | 70 dB |
| Polarization | Dual-slant |
| Cross-polarity isolation | > 28 dB |
| LEDs | |
| System | (12) Status LEDs: Data port pink/activity Data port speed Management port link/activity Management port speed GPS synchronization Master/slave Link status Modulation mode 0.25x to 4x, 6x, 8x, 10x (unlabelled), overload Remote and local displays (Calibrated signal strength) |
