Description
| Mechanical | |
|---|---|
| Dimensions | 224 x 82 x 48 mm (8.82 x 3.23 x 1.89″) |
| Weight | 0.35 kg (0.77 lb) |
| Mounting | airFiber X mount (Rocket mount compatible) GPS pole mount (Included) |
| Hardware | |
| Processor | NVICTUS™ IC |

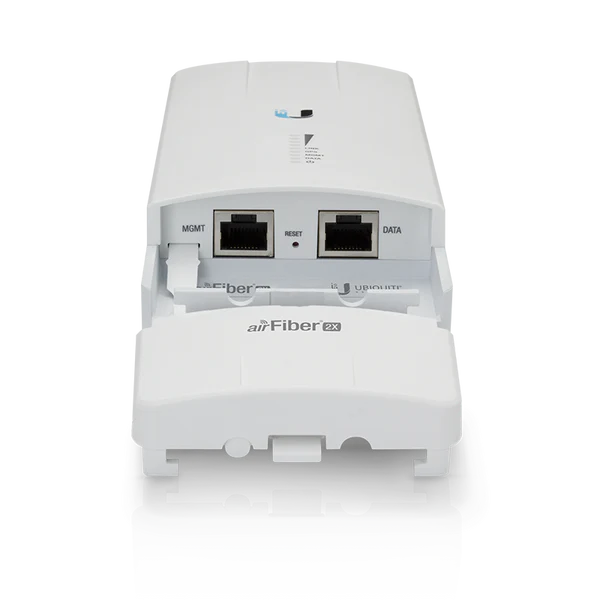

| Networking Interface | (1) 10/100/1000 MbE port (1) 10/100 MbE port |
| Power method | Passive PoE (Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-)) |
| Power supply | 24V, 1A PoE Gigabit adapter (Included) |
| Max. power consumption | 17W at power/duty cycle |
| Supported voltage range | 19-29V DC |
| GPS antenna | External, magnetic base |
| Operating temperature | -40 to 55° C (-40 to 131° F) |
| Certifications | CE, FCC, IC |
| Software | |
| OS | airOS |
| Modes | PtP Master/Slave |
| System | |
| Max. throughput | 525 Mbps |
| Max. range | 200+ km |
| Encryption | 128-bit AES |
| RF | |
| Operating frequency | 2.4 GHz |
| Max TX power* | 30 dBm *Depends on regional regulations. |
| Frequency accuracy | ± 2.5 ppm without GPS synchronization ± 0.2 ppm with GPS synchronization |
| Channel bandwidth* | 3.5/5/7/10/14/20/28/30/40/50/56 MHz selectable Programmable Uplink and Downlink duty cycles Independently programmable TX and RX frequencies *Channel widths may vary according to country/region regulations. |
