| Specifications |
|---|

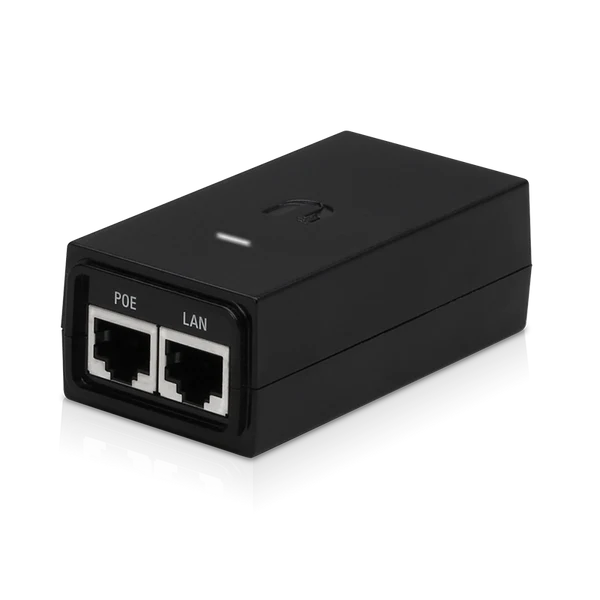

| Model | POE-24-12W |
| Dimensions | 87 x 44 x 29 mm (3.43 x 1.73 x 1.14″) |
| Weight | 92 g (3.25 g) |
| Output Voltage | 24VDC @ 0.5A |
| LAN Activity Indicator | No |
| Gigabit LAN Port | No |
| Remote Reset Capability | Yes |
| Reset Button | Yes |
| Rated Voltage | 100-240VAC @ 50/60Hz |
| Input Current | 0.3A @ 120VAC, 0.2A @ 240VAC |
| Inrush Current | <30A Peak @ 120VAC, <60A Peak @ 230VAC |
| Efficiency | 75+% |
| Output Ripple | 1% Max. |
| Switching Frequency | 50 kHz |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| 2-Pair Powering | Pins 4, 5 (+) and Pins 7, 8 (-) |
| 4-Pair Powering | – |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Storage Temperature | -30 to 70°C (-22 to 158° F) |
| Operating Humidity | 35 to 95% Noncondensing |
| AC Connector | IEC-320 C6 |

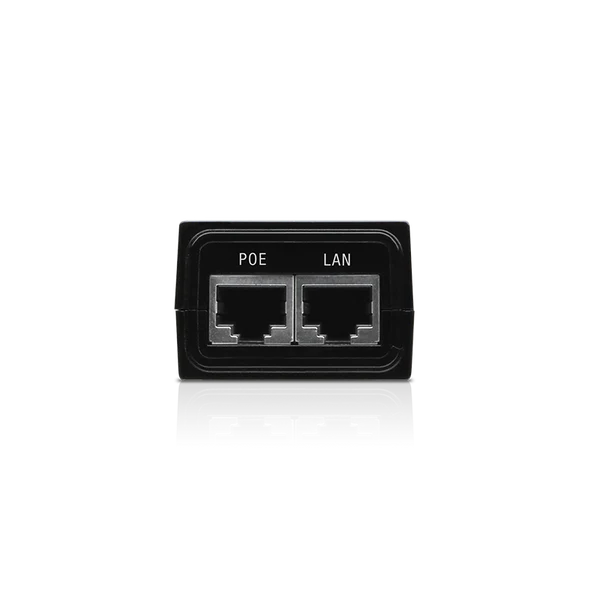

| Data IN / PoE | RJ45 Shielded Socket |
| Surge Protection | Difference and Common Mode |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20 μs) Power |
| Peak Pulse Current | 36A (10/1000 μs) Data |
| Shunt Capacitance | <5 pF data |
| Response Time | <1 ns |
| Certifications | CE, FCC, IC, UL |
