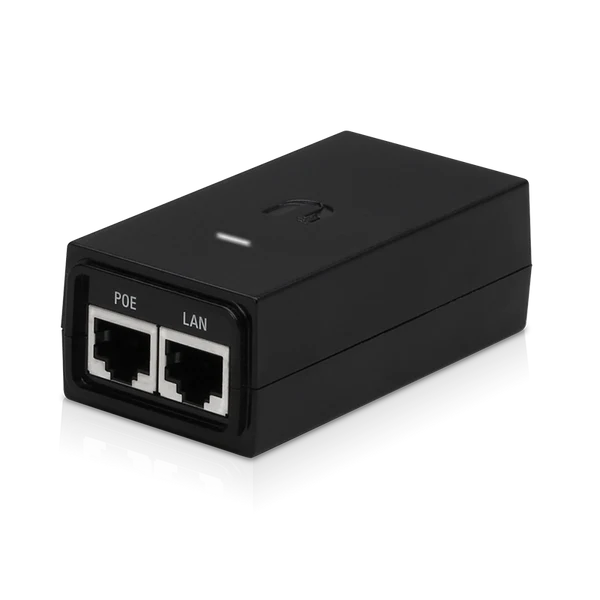

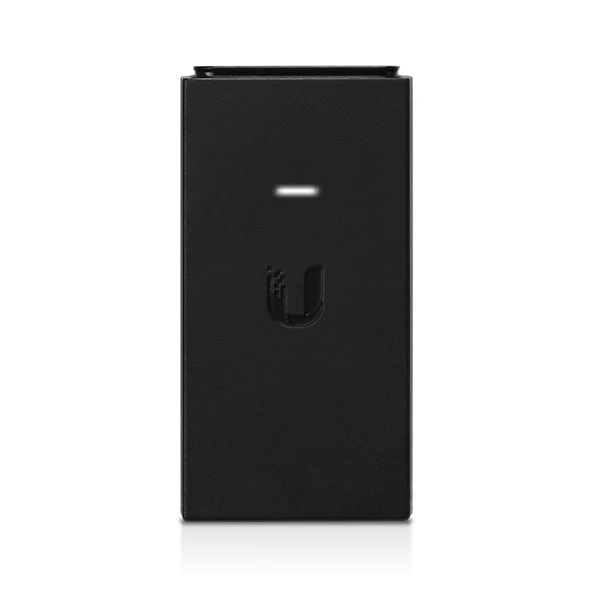

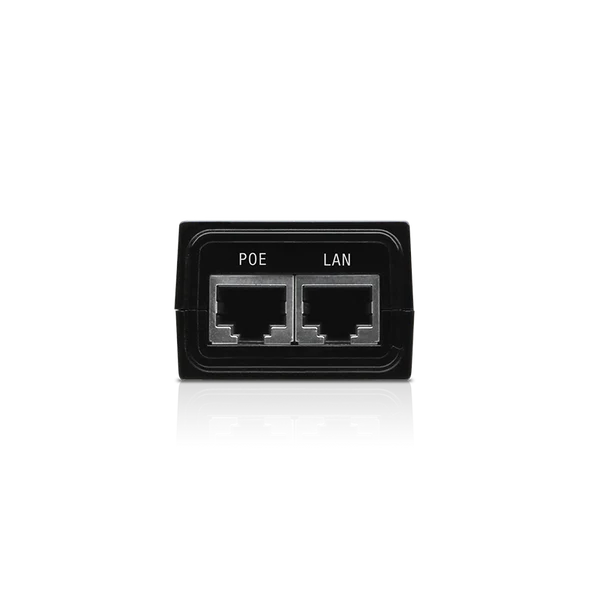

PoE Injector 15VDC 12W

SKU: POE-15-12W Category:

In Stock

    • Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:



      • Surge protection
      • Clamping protection
      • Maximum surge discharge
      • Peak pulse current
      • AC cable with earth ground

Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCableTM, and TOUGHCable Connectors.

Request Quote:

SKU: POE-15-12W Category:

Description

Specifications
ModelPOE-15-12W
Dimensions85 x 44 x 29 mm (3.35 x 1.73 x 1.14″)
Weight91.7 g (3.24 oz)
Output Voltage15VDC @ 0.8A
LAN Activity IndicatorNo
Gigabit LAN PortNo
Remote Reset CapabilityNo
Reset ButtonNo
Rated Voltage100-240VAC @ 50/60Hz
Input Current0.3A @ 120VAC, 0.2A @ 240VAC
Inrush Current<30A Peak @ 120VAC, <60A Peak @ 230VAC
Efficiency75+%
Output Ripple1% Max.
Switching Frequency50 kHz
Line Regulation≤ 3%
Load Regulation≤ 5%
2-Pair PoweringPins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering
Operating Temperature0 to 40° C (32 to 104° F)
Storage Temperature-30 to 70°C (-22 to 158° F)
Operating Humidity35 to 95% Noncondensing
AC ConnectorIEC-320 C6
Data IN / PoERJ45 Shielded Socket
Surge ProtectionDifference and Common Mode
Clamping Protection11V Data, 60V Power
Max. Surge Discharge1500A (8/20 μs) Power
Peak Pulse Current36A (10/1000 μs) Data
Shunt Capacitance<5 pF data
Response Time<1 ns
CertificationsCE, FCC, IC, UL
